ESSL
In Stock
Door Access Specialist

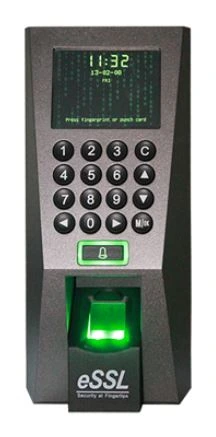

ESSL F18 Fingerprint Door Access Control Attendance Device – LP Solutions Hyderabad
ESSL F18 front
ESSL F18 angle
Fingerprint · Door Access & Attendance

ESSL F18

Compact Fingerprint Door Access Control & Time Attendance Terminal — Built for Single-Door Security and Daily Attendance Together

4.5 / 5 (44 verified reviews)

One Device, Multiple Applications

Time & Attendance Canteen Management School Attendance Production Management Gym & Clubs
3,000 Fingerprints
5,000 Card Capacity
ID Speed < 0.5 seconds
Anti-Passback Enabled
Relay for Electric Lock
Wiegand In & Out
Get Best Price WhatsApp Enquiry Call +91 9393662183 for Instant Quote
Genuine ESSL Product with Warranty
On-Site Installation
After-Sales Support
Serving Hyderabad & Telangana

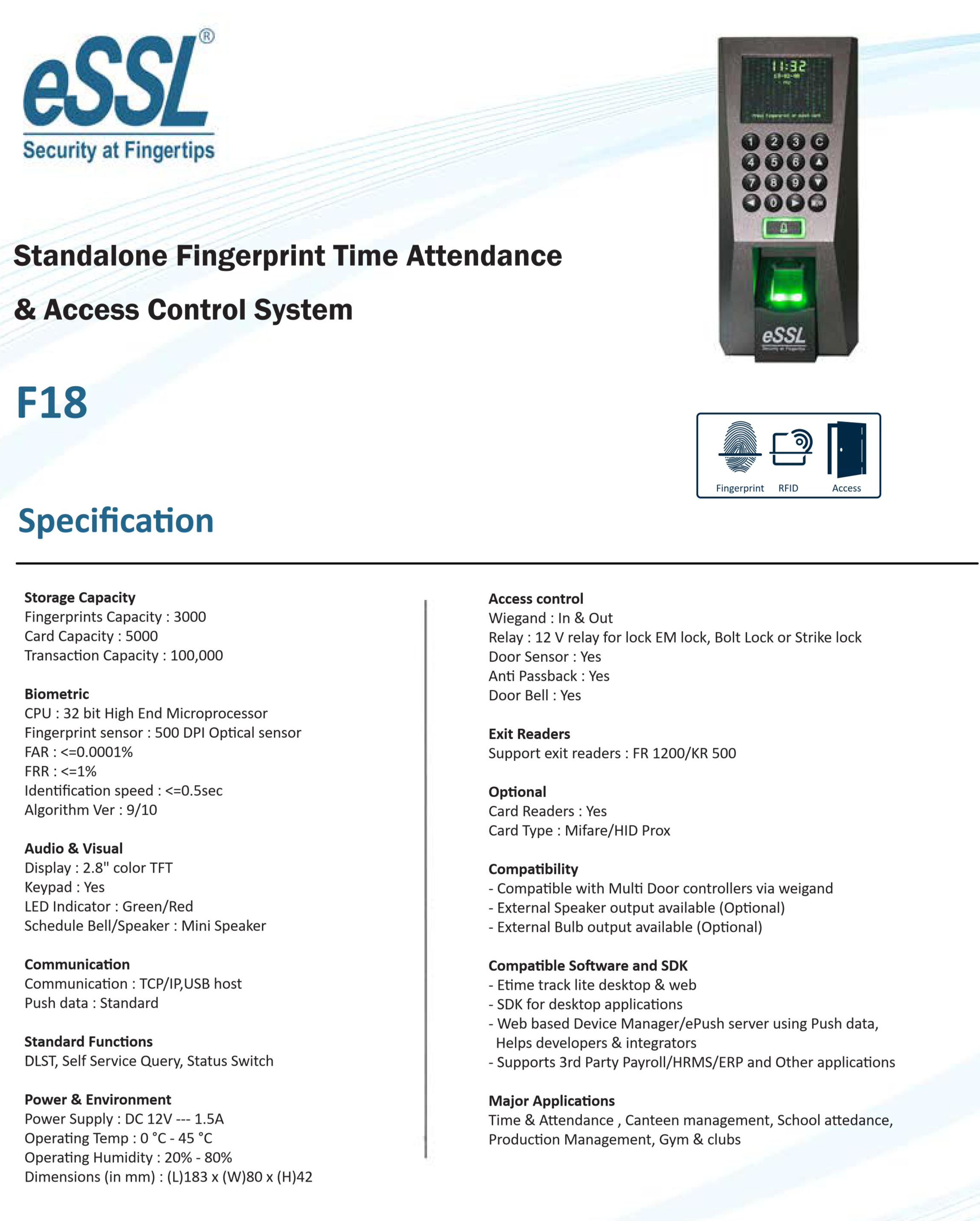

Complete Specifications – ESSL F18

Full technical specifications for the ESSL F18 fingerprint door access control and attendance terminal.

Compact, Dual-Purpose Design

Combines fingerprint attendance recording and door access control in a single compact terminal — ideal where space is limited and budget matters.

500 DPI Optical Fingerprint Sensor

High-precision sensor with Algorithm Version 9/10 ensures fast, accurate fingerprint matching with industry-leading FAR/FRR rates.

Anti-Passback Security

Prevents tailgating and card/fingerprint sharing at secured entries — ensures every entry and exit is individually verified and logged.

Door Sensor & Door Bell

Built-in door sensor detects forced or prolonged door openings, while the door bell feature notifies staff of visitor arrivals at the entry point.

Wiegand In & Out

Full Wiegand input and output support allows integration with existing access control panels and multi-door controllers already installed on-site.

Multi-Application Versatility

Suited for time and attendance, canteen management, school attendance, production management, and gym or club access — one device, many use cases.

Standard Push Data

Pushes attendance and access logs to software in standard mode via TCP/IP — keeps your records synced without manual downloads.

Exit Reader Compatibility

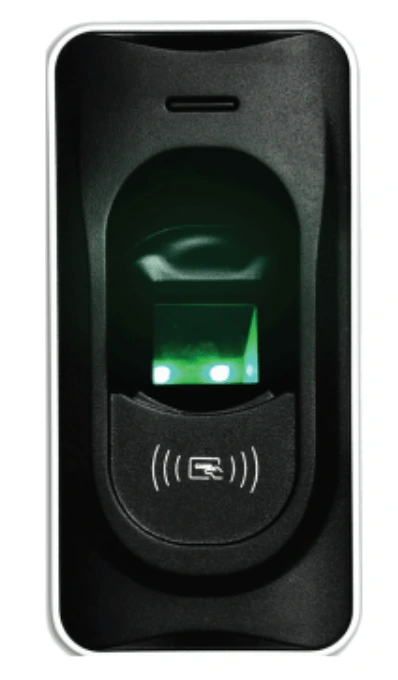

Supports FR-1200 and KR500 exit readers, giving flexibility in how the exit side of a controlled door is configured.

ParameterValue
Fingerprint Capacity3,000 fingerprint templates
Card Capacity5,000 cards
Transaction / Log Capacity1,00,000 records
Identification Speed≤ 0.5 seconds
False Acceptance Rate (FAR)≤ 0.0001%
False Rejection Rate (FRR)≤ 1%
Algorithm Version9 / 10
Fingerprint Sensor500 DPI optical sensor
SpecificationDetails
CPU32-bit high-end microprocessor
Display2.8-inch color TFT screen
Keypad Yes
LED IndicatorGreen (success) / Red (failure)
SpeakerMini speaker (schedule bell support)
Battery No — requires continuous power supply
Power SupplyDC 12V / 1.5A
Dimensions (L × W × H)183 mm × 80 mm × 42 mm
Operating Temperature0°C to +45°C
Operating Humidity20% – 80% RH
ParameterDetails
CommunicationTCP/IP, USB Host
WiegandIn & Out
Relay12V relay — for EM lock, bolt lock, or strike lock
Door Sensor Yes
Anti-Passback Yes
Door Bell Yes
Exit Readers SupportedFR-1200 / KR500
Multi-Door ControllerCompatible via Wiegand interface
External Speaker OutputOptional
External Bulb OutputOptional
Push DataStandard
Standard FunctionsDLST, Self Service Query, Status Switch
